FORCE-LIFT tube lifter
The FORCE-LIFT is the comprehensive first one-handed tube lifter that can lift up to 75 kg. Maximum flexibility and optimal adaptation to
working conditions and lifting goods thanks to
the modular design make this system flexible and efficient…
- for boxes, barrels, bags, sheet metal, plastic and wooden parts
- during order picking, palletizing or depalletizing
- for loading or unloading materials onto machines in the production process
- for all logistics processes requiring lifting
- in any industry branches
SPECIFICATION
Gallery
Files to download
TUBE LIFTERS - TECHNICAL CHARACTERYSTICS
| Load capacity* [kg] |
Tube diameter [mm] |
Lift height [mm] |
Mounting height [mm] |
Item code |
| 30 | 100 | 1300 | 2270 | FL-30-P50/100/1700 |
| 30 | 100 | 1530 | 2570 | FL-30-P50/100/2000 |
| 30 | 100 | 1775 | 2870 | FL-30-P50/100/2300 |
| 35 | 120 | 1320 | 2270 | FL-35-P50/120/1700 |
| 35 | 120 | 1550 | 2570 | FL-35-P50/120/2000 |
| 35 | 120 | 1782 | 2870 | FL-35-P50/120/2300 |
| 45 | 120 | 1320 | 2270 | FL-45-P80/120/1700 |
| 45 | 120 | 1550 | 2570 | FL-45-P80/120/2000 |
| 45 | 120 | 1782 | 2870 | FL-45-P80/120/2000 |
| 40 | 120 | 1320 | 2270 | FL-40-SV400/120/1700 |
| 40 | 120 | 1550 | 2570 | FL-40-SV400/120/2000 |
| 40 | 120 | 1782 | 2870 | FL-40-SV400/120/2300 |
| 75 | 160 | 1340 | 2270 | FL-75-SV400/160/1700 |
| 75 | 160 | 1580 | 2570 | FL-75-SV400/160/2000 |
| 75 | 160 | 1815 | 2870 | FL-75-SV400/160/2300 |
*Depending on the configuration and porosity, the load capacity may be reduced.
SUCTION FEETS - TECHNICAL CHARACTERISTICS
| Transport goods | Suction pl. dimensions [mm] |
LT dia. 100 mm |
LT dia. 120 mm |
LT dia. 160 mm |
Type | |
 |
boxes; porous panels |
85 x 200 | + | + | - | DSF-FL-2L/85x200/NBR-400 |
| 110 x 300 | + | + | + | DSF-FL-2L/110x300/NBR-400 | ||
 |
boxes; porous panels |
Φ 160 | + | - | - | MSF-FL-1F/160/PU |
| Φ 200 | + | + | - | MSF-FL-1F/200/PU | ||
 |

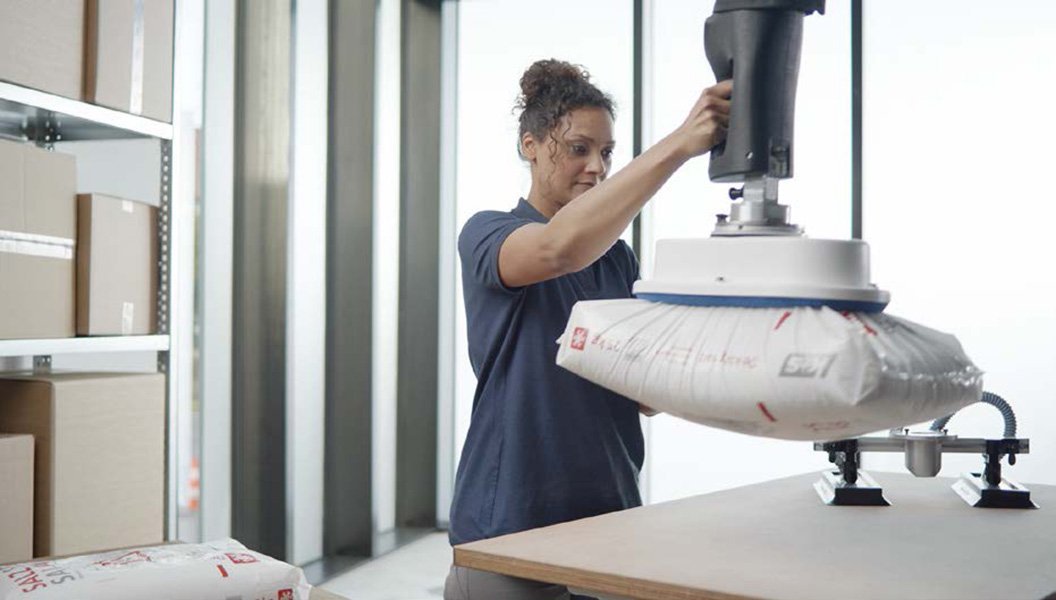

bags | 395 x 210 | + | + | + | BSF-FL-1M/395x210/LA-KU |
 |
barrels | Φ 186 | + | - | - | MSF-FL-1T/186/EPDM |
| Φ 210 | + | - | - | MSF-FL-1R/210/NBR | ||
| Φ 226 | + | + | - | MSF-FL-1T/226/EPDM | ||
| Φ 270 | + | + | - | MSF-FL-1R/270/NBR | ||
 |
canisters | - | + | + | + | HSF-FL |
